Name: Non-rotating Torque Transducer for Industrial Use
Brand: Top Sensor Technology Co.Ltd
SKU: ZNJ-103
Price: 500.00 USD
Availability: InStock

Non-rotating Torque Transducer for Industrial Use

MOQ

USD450-550

Prijs

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Type: niet-roteert

Materiaal: Roestvrij staal

Het aanpassen: Beschikbaar

Markeren:

industrial torque transducer

strain gauge torque sensor

non-rotating load cell

Basis informatie

Plaats van herkomst: China

Merknaam: Top Sensor

Modelnummer: ZNJ-103

Betalen & Verzenden Algemene voorwaarden

Verpakking Details: Dozen

Levertijd: 7 dagen

Betalingscondities: L/C, T/T

Levering vermogen: 2000 pc's per maand

Galerij

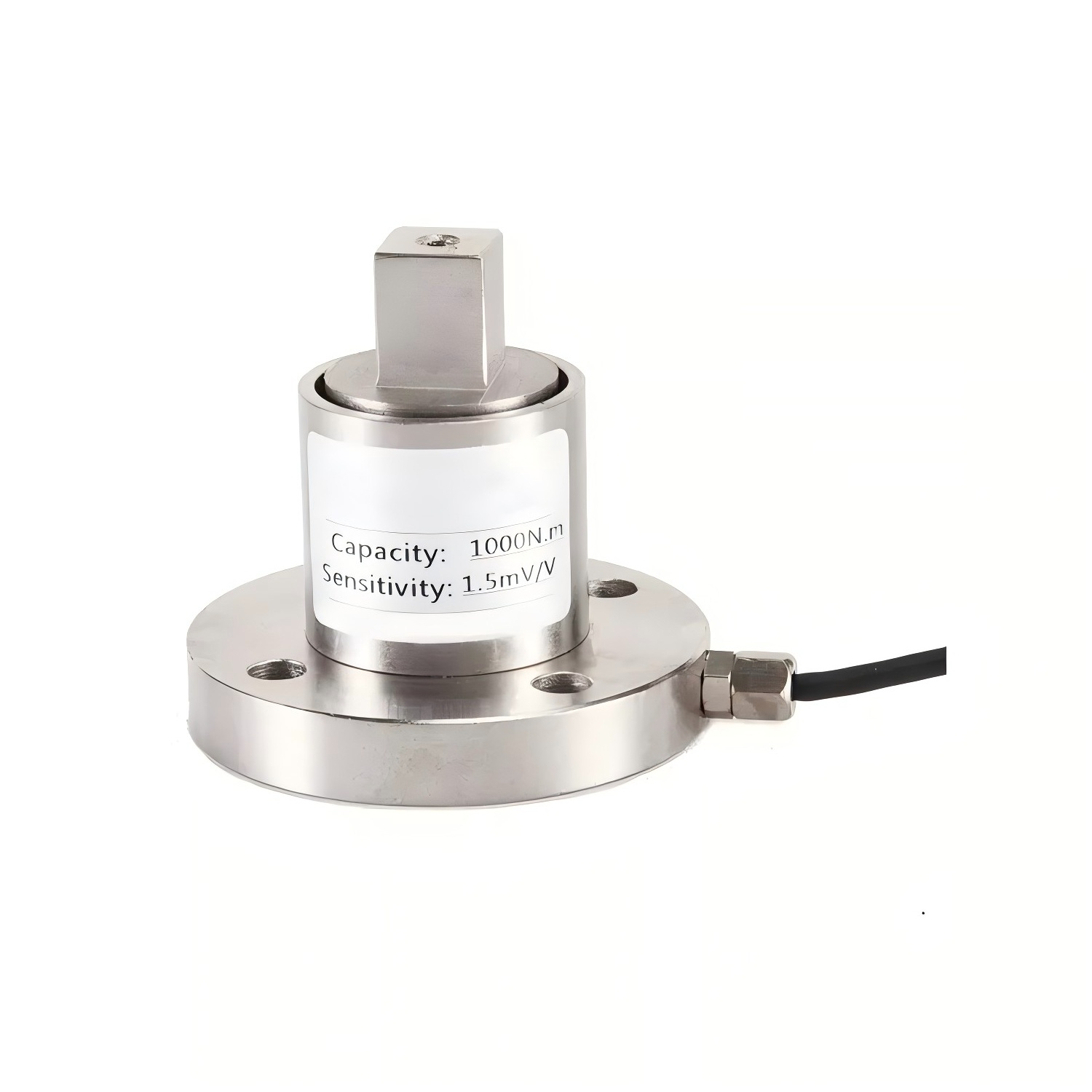

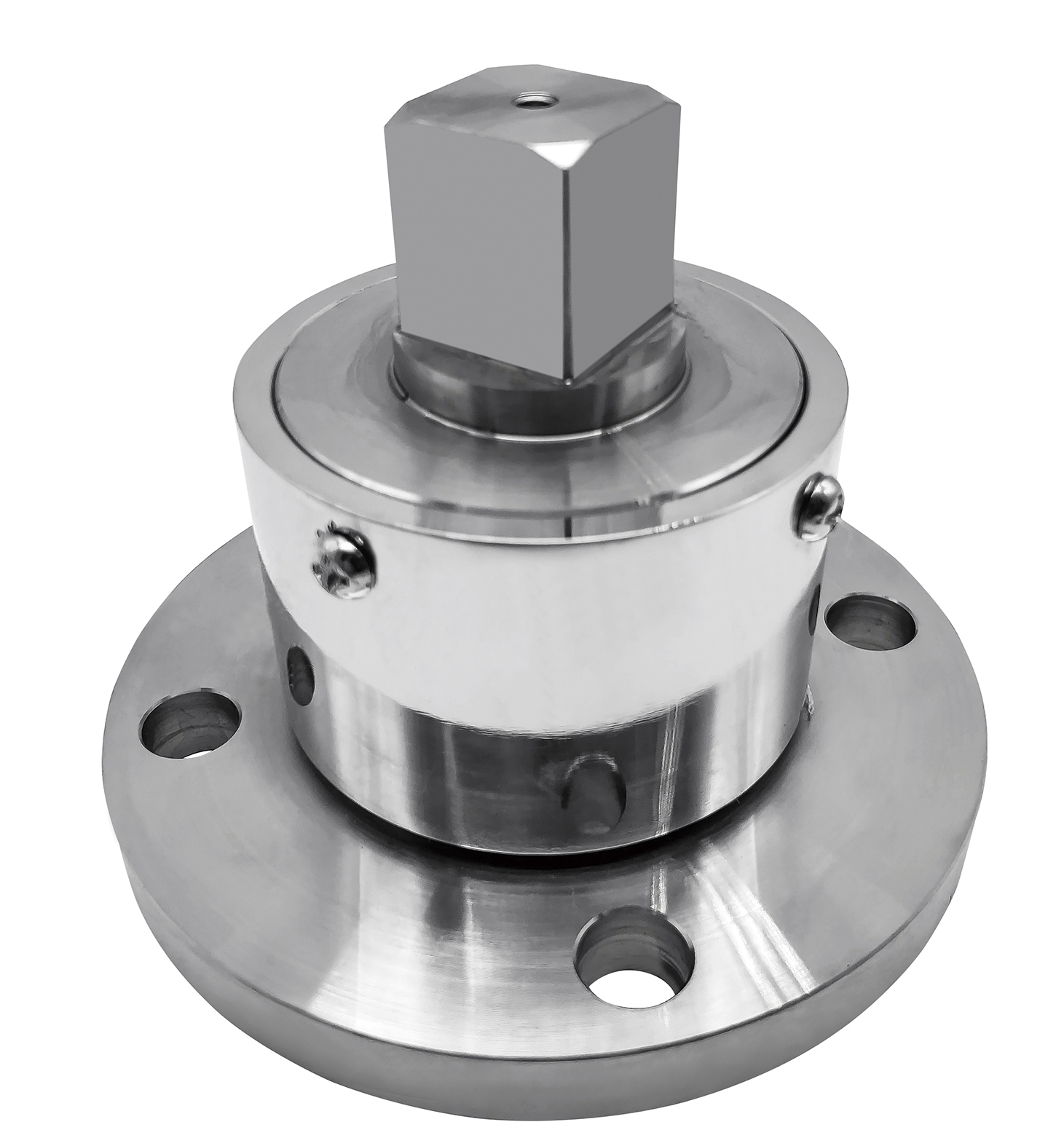

Non-rotating Torque Transducer for Industrial Use

Productomschrijving

Non-rotating Torque Transducer for Automotive Industrial Use

Model: ZNJ-103

Features:

1. It applies resistance strain gauge integrated with circuitwhich is accurate ,stable, and of large measuring range.
2. Middle capacity static measuring, easy to install.
3. One ends with key (or external square key) joint , anotherend with flanged joint.

Application:

Static torque transducers with mechanical protection are vital in numerous industrial and research settings where precise, non-rotating torque measurement is critical:

Automotive: Calibrating torque wrenches and monitoring the tightening of critical bolts to ensure safe and accurate assembly.
Aerospace: Assembling aircraft components where precise torque application prevents structural failures.
Quality control: Testing motors, gearboxes, and fasteners during the production process to ensure products meet quality specifications.
Research and development: Measuring the breakaway and running torque of components during the design and testing phases.
Tool calibration: Verifying the output of manual, pneumatic, and electric torque tools against a known standard.

Dimension:mm

Non-rotating Torque Transducer for Industrial Use 0

Specification:

Parameters	Specification
Capacity	0~20,50,100,200,300,500,1000Nm
Rated Output	1.5+10% mV/V
Zero Balance	±1%FS
Non Linearity	+0.1-0.3%FS
Hysteresis	±0.05%F.S
Rapeatability	0.05%F.S
Creep	0.03%F.S/30min
Tamp Effact On Output	0.03%F.S/10℃
Temp Effect On Zero	0.03%FS/10℃
lnput impedance	350/750±10Ω
Output impedance	350/700±50Ω
Raspones Fraquency	100μS
Insulation	≥5000MΩ/100V
Recommended Excitation	10V(DC)
Compensated Temp Range	-10 ~ 60℃
Operation Temp Range	-20 ~ 65℃
Safe Overload	150%F.S
Ultimate Overload	200%F.S
Cable Size	φ5.2 x 3 m
Cable Color Code	Input Red( +), Black(-)Output Green(+), white(-)
Material	Stainless steel/Alloy steel
