Full Bridge Resistant Strain Gauge with Solder Points

Full Bridge Resistant Strain Gauge with Solder Points

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Hysteresis: ± 0,05%

Meetbereik: 0-1000 Microstrain

Operationele Temperatuur: -20 ̊+80°C

Gebruik: de sensor van de ladingscel

Dragermateriaal: Fenolische aldehyde/polyimide/epoxy

Functie: Micropressorsensor

Materiaal: Metaalfolie

Kruipen: ± 0,05% Volle schaal

Type: Resistentie-spanningsmeter

Laddraad: 3 draden, 1 m lang

Weerstand: 350,5001000 Ohm

Dienst: aangepast

Model: EB -serie

Werktemperatuur: -20 ̊+80°C,

Voor materiaal: Staal of aluminiumlegering

Basismateriaal: Fenol-aldehyde/polyimide/epoxy

Markeren:

full bridge strain gauge with solder points

,

foil strain gauge with solder connections

,

resistant strain gauge full bridge type

Basis informatie

Plaats van herkomst: CHINA

Merknaam: Top Sensor

Modelnummer: EB -serie

Betalen & Verzenden Algemene voorwaarden

Verpakking Details: Karton doos

Galerij

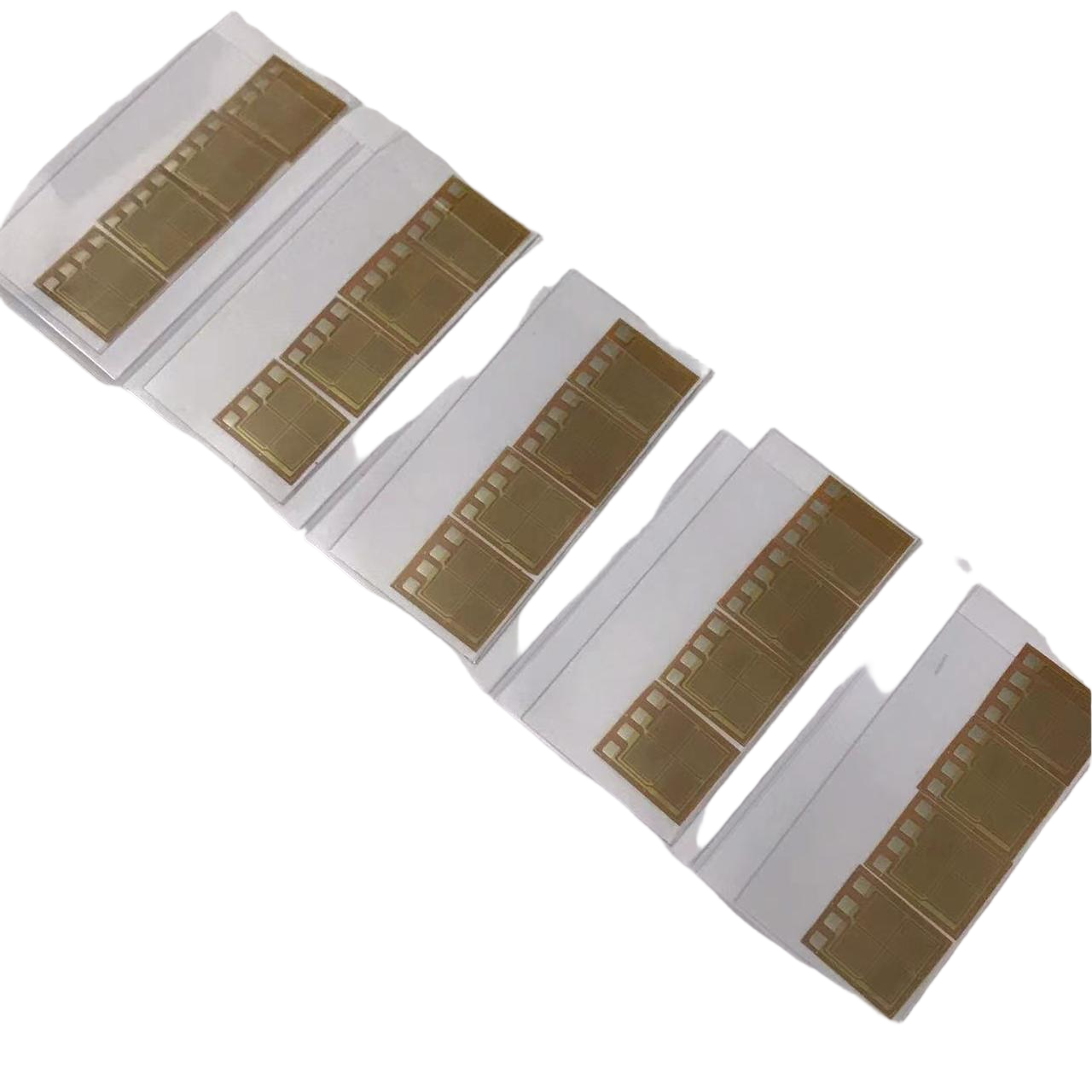

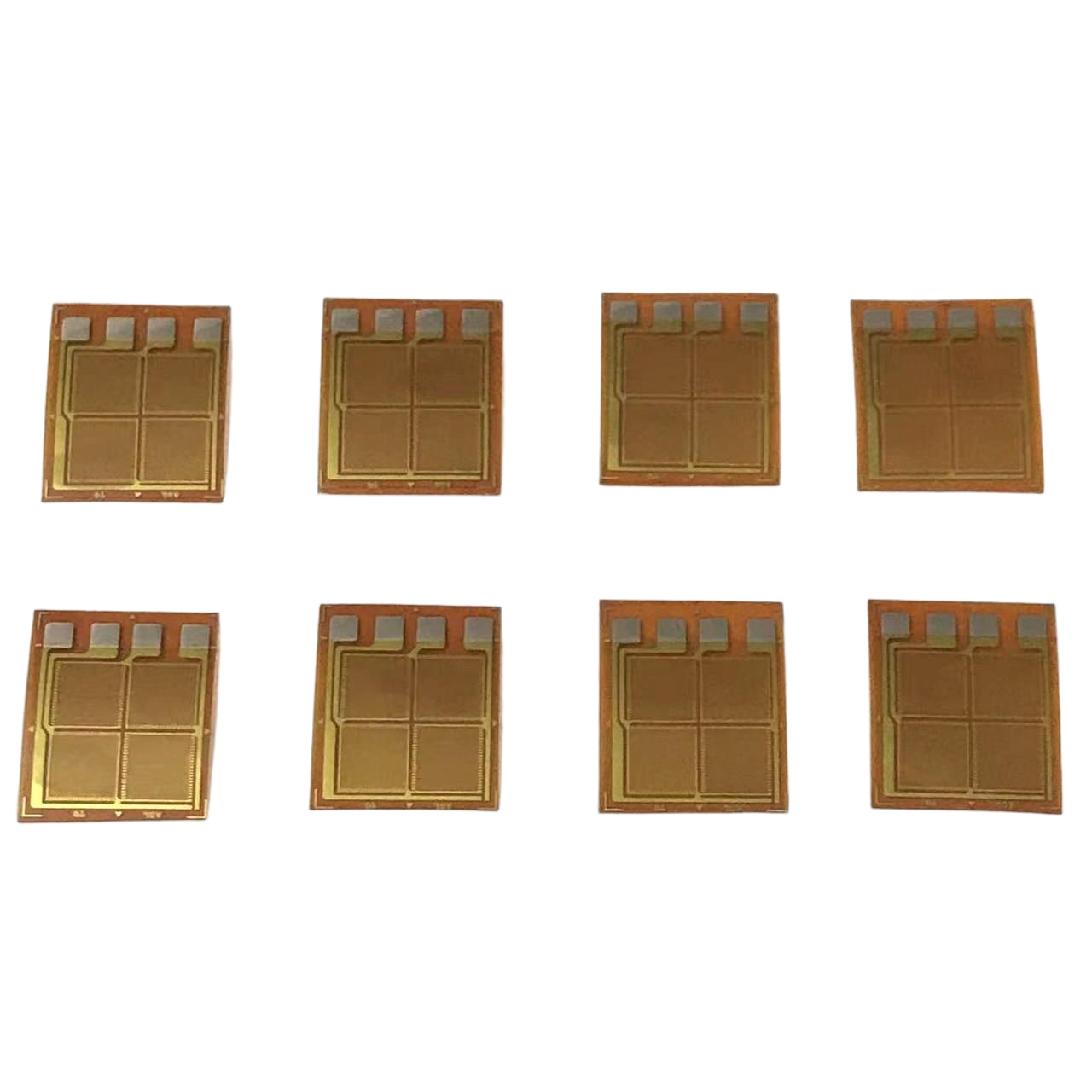

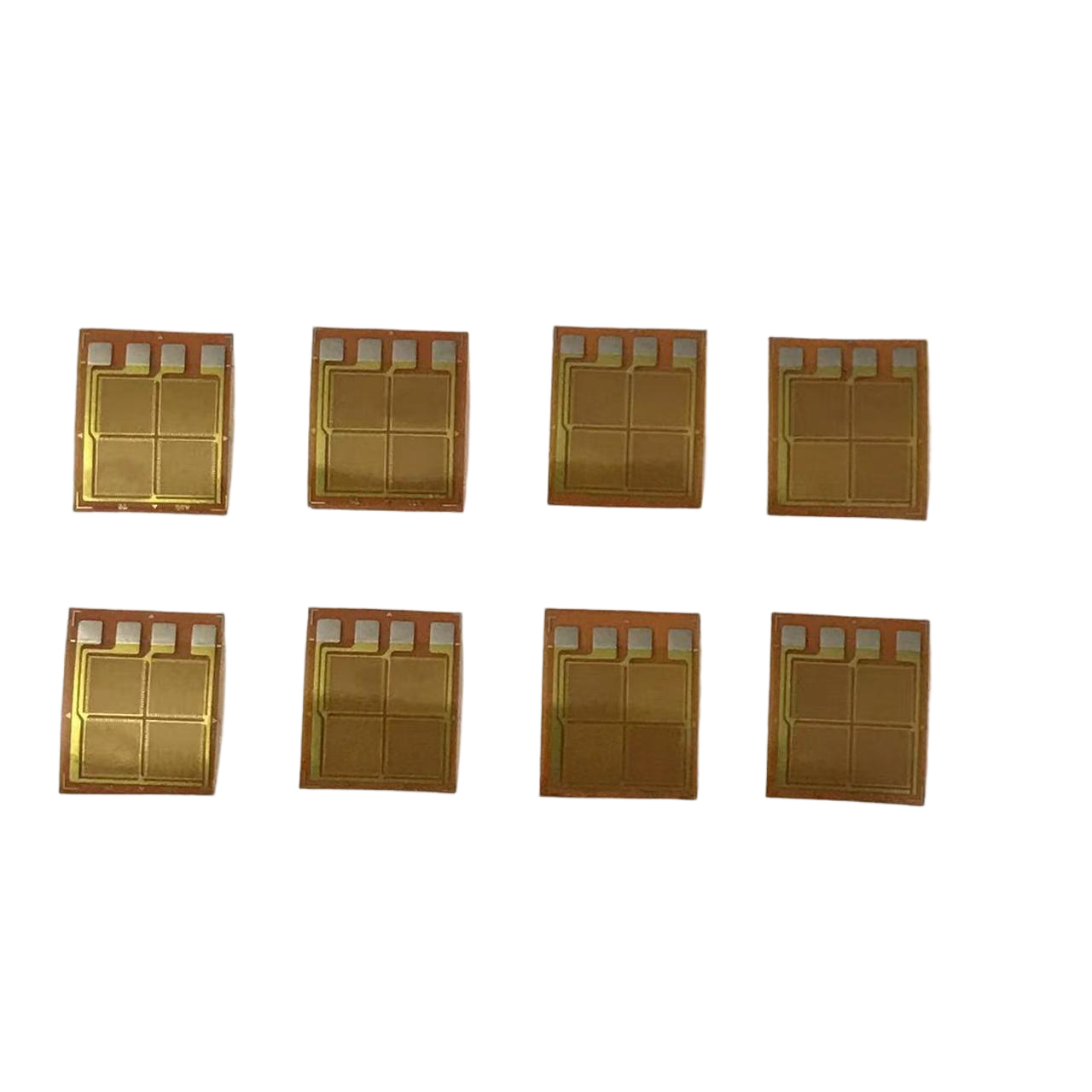

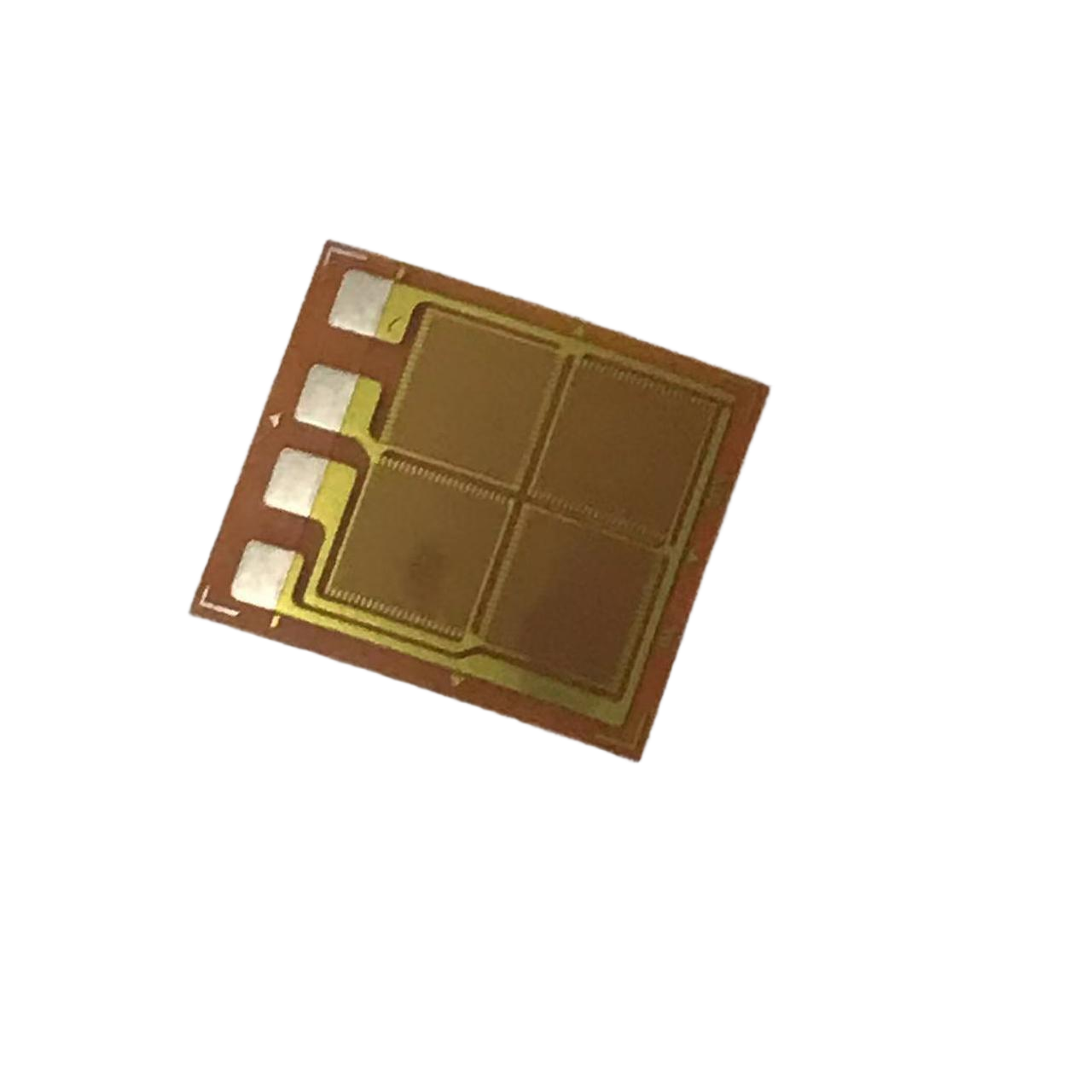

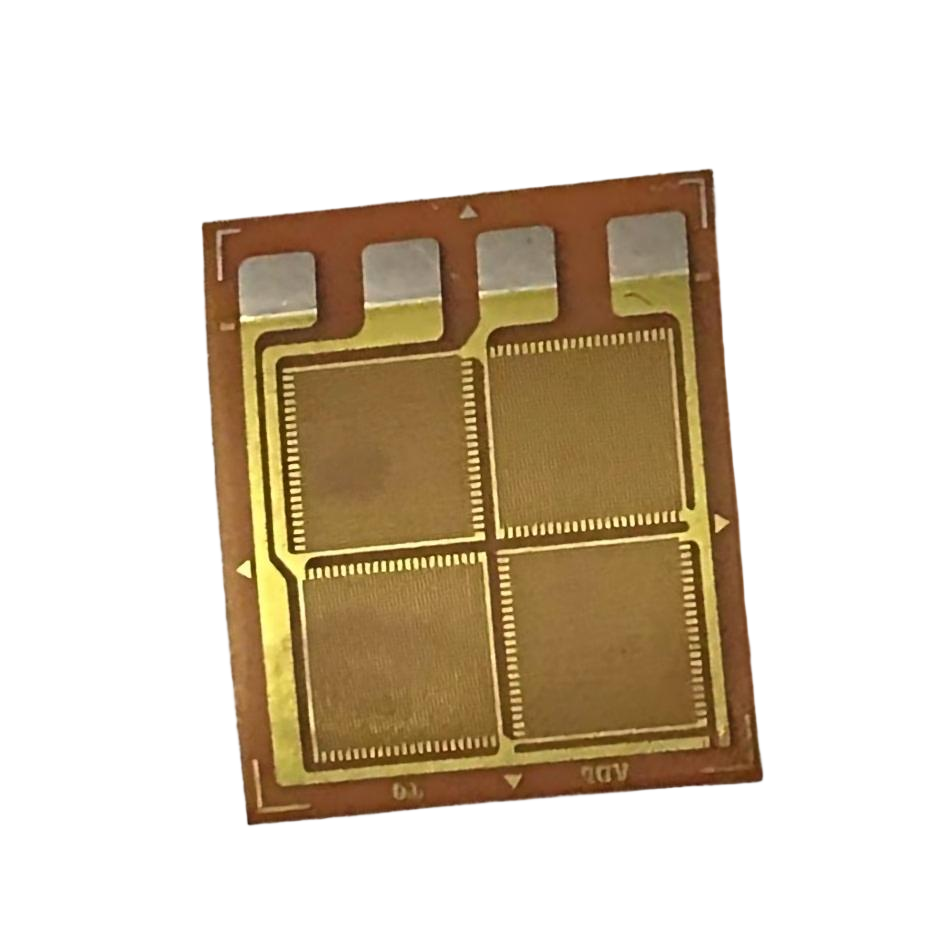

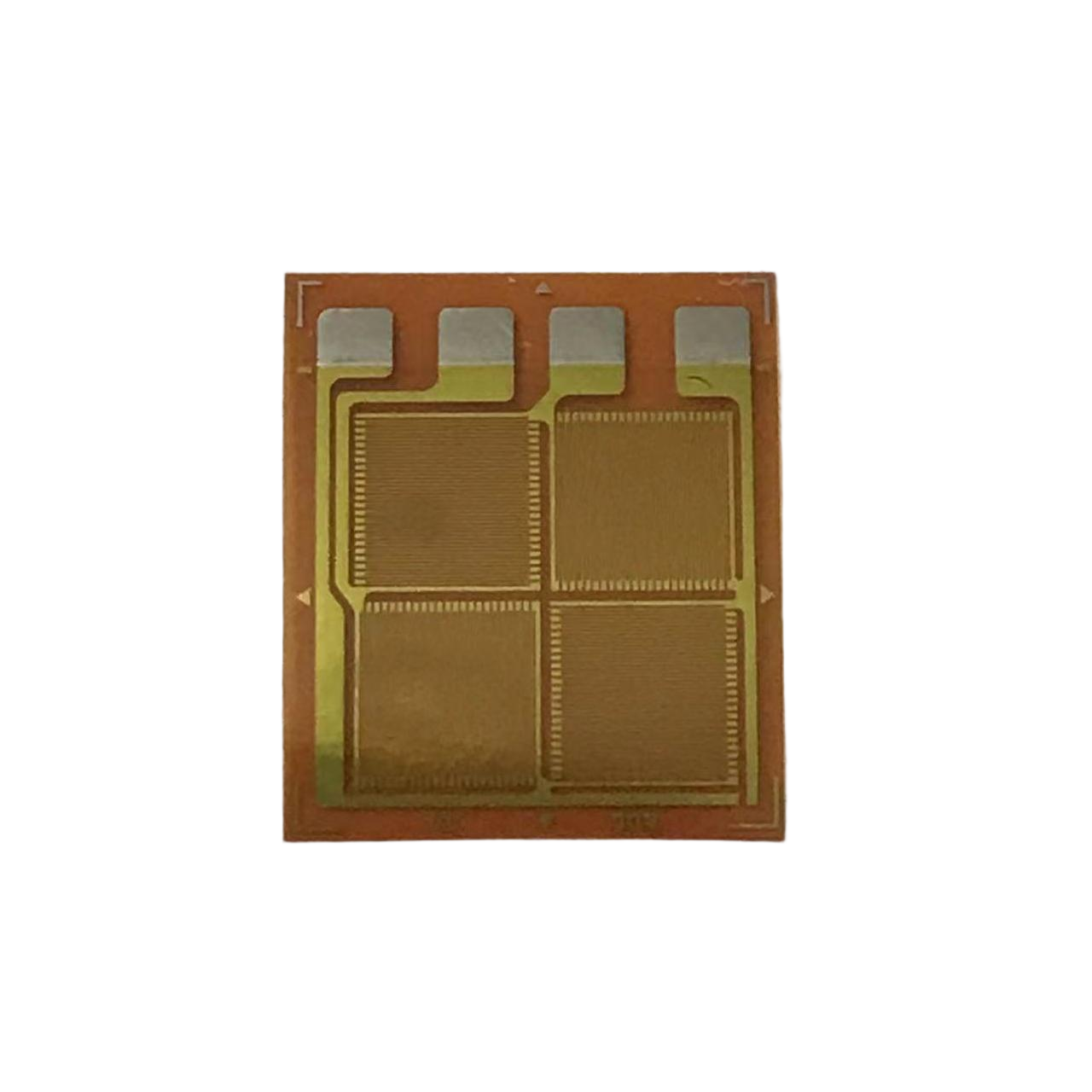

Full Bridge Resistant Strain Gauge with Solder Points

Productomschrijving

Full Bridge Resistant Strain Gauge with Solder Points

Model: EB-A series

Product Description:

A full-bridge strain gauge is a high-performance sensor configuration that uses four active strain gauges wired into a Wheatstone bridge circuit All four gauges are bonded to the test object, which maximizes measurement sensitivity and provides superior compensation for thermal effects and extraneous loads compared to quarter- and half-bridge setups.

Features:

Product Name: Foil Strain Gauge
Grid number: 4
Hysteresis: ±0.05% Full Scale
Material: Steel or Alloy Aluminum
Measurement Range: 0-1000 Microstrain
Service: Custom design on carrier size, grid dimension
Carrier Material: Imported Phenolic Aldehyde/Polyimide/Epoxy
Measuring Material: Foil(nickel copper alloy, Constantan or Karma)
Resistance: 350,500,1000 Ohm
Operational temperature －20～＋80℃, Temperature compensation range ＋10～＋80℃
Each package 40 pcs, can be soldered copper wire, good performance
Three (3) to Five (5) solder points

Dimension:

Model	Measuring Grid Size (mm)	Carrier Size (mm)
BF350-3EB-A	2.25×2.65	9.2×7.7
ZF1000-3EB-A	2.25×2.65	9.2×7.7

Note: Other models and sizes are available according to customer request

Full Bridge Resistant Strain Gauge with Solder Points 0

Customization: carrier size, grid dimension, resistance
